Ⅰ. Product Overview:
LKXR-RD111 series employs X-band solid-state phased-array technology with AI-enhanced pulse-Doppler processing, engineered for long-range detection of “low-slow-small” targets. Three mechanical options—single panel, single panel with turntable, or four-panel array—cover fixed-site, mobile, and wide-area networking applications. A 0.01 m² drone is tracked beyond 10 km.
Ⅱ. Product Features
• Solid-state: no rotary joints, MTBF ≥20 000 h
• 10 km reach: 30 % longer than comparable radars
• 0.4° precision: azimuth & elevation lock
• AI fast ID: target type & track in ≤0.5 s
• Plug-and-play: three mounting styles, 15 min setup
• Wide climate: -40 °C to +60 °C, all-weather
Ⅲ. Qualification
|
Parameter
|
111A
|
111B
|
111C
|
|
Frequency
|
X-band
|
X-band
|
X-band
|
|
Installation
|
Single panel
|

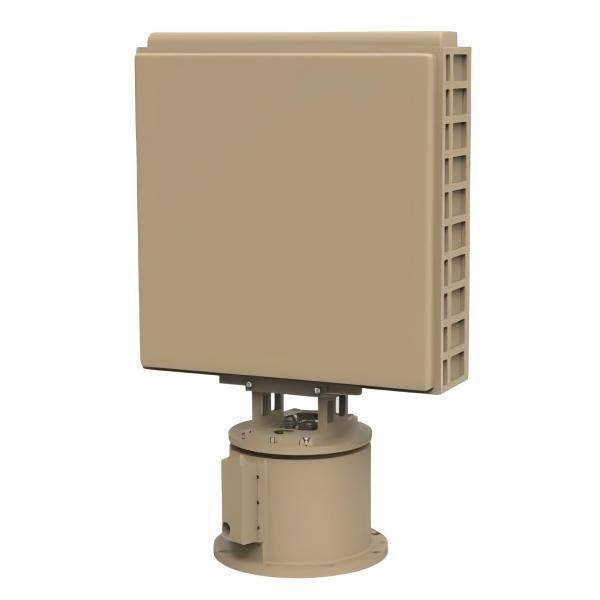

Single panel + turntable
|
4-panel array
|
|
Detection range (0.01 m²)
|
≥10 km
|
|
Blind zone
|
≤200 m
|
|
Azimuth coverage
|
±45°
|
360°
|
360°
|
|
Elevation coverage
|
0°–30° (configurable)
|
|
Velocity range
|
1 m/s – 100 m/s
|
|
Range accuracy
|
<10 m
|
|
Azimuth accuracy
|
<0.4°
|
|
Elevation accuracy
|
<0.4°
|
|
Search update
|
≤4 s
|
|
TAS update
|
≤0.5 s
|
|
Interface
|
Gigabit Ethernet
|
|
Weight
|
≤25 kg
|
≤40 kg
|
≤120 kg
|
|
Power supply
|
AC 220 V / DC 28 V
|
|
Power consumption
|
≤1200 W
|
≤1300 W
|
≤5000 W
|
|
Dimensions (mm)
|
520×330×200
|
770×330×250
|
1200×1200×650
|
|
Operating temperature
|
-40 °C to +60 °C
|
Ⅳ. Selling Points
1. “See 10 km in one glance”
2. LEGO-style deployment—one person, 15 minutes
3. 0.4° laser-grade cueing—direct EO/jammer cue
4. Dual power—AC 220 V or DC 28 V field ready
5. Zero maintenance—solid-state design
