Ⅰ. Product Overview

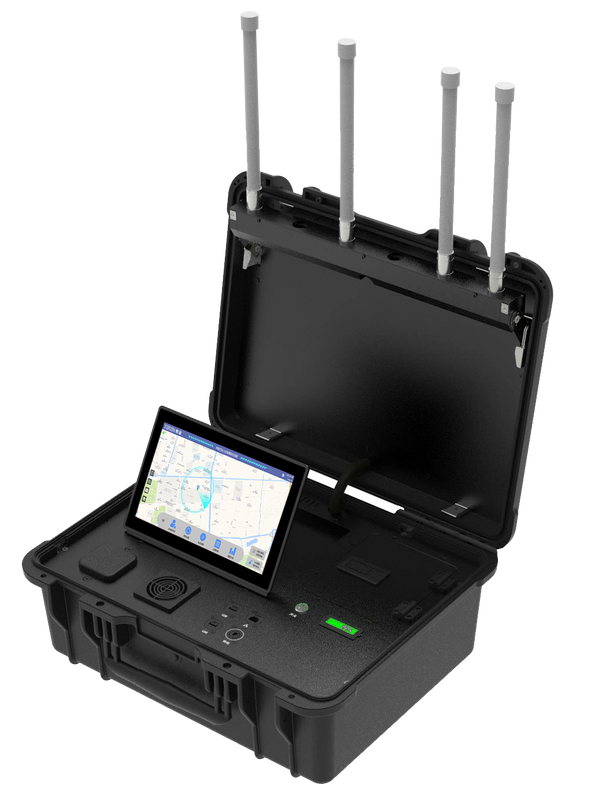

The H1C is abriefcase-style portable drone detection devicedesigned for drone monitoring missions. The device captures multi-dimensional drone information in real time, including:
· Identity Information: SN code, model
· Location Information: Longitude/latitude, azimuth, distance
· Flight Status: Speed, height, altitude, home point
· Pilot Information: Controller location (longitude/latitude, azimuth, distance)
The H1C supportsoffline/online dual-mode operationwith touch screen control. It is easy to carry, quick to deploy, and ready to use out of the box.
Ⅱ. Product Application Scenarios
|
Scenario
|
Description
|
|
Routine Patrols
|
Regular inspections of key areas, timely detection of "black flight" targets
|
|
Critical Asset Protection
|
Low-altitude defense for sensitive areas such as airports, nuclear power plants, and government facilities
|
|
Large Event Security
|
Aerial security for temporary events such as competitions and conferences
|
|
Field Operations
|
Reliable operation even in environments without network coverage
|
Ⅲ. Product Technical Specifications
|
Item
|
Specification
|
|
Operating Mode
|
Passive RF sensing (passive detection)
|
|
Detection Frequency Bands
|
900 MHz / 1.2 GHz / 2.4 GHz / 5.2 GHz / 5.8 GHz
|
|
Swarm Detection
|
Simultaneous detection of ≥10 drones
|
|
Detection Range
|
1 - 10 km (varies by environment and drone model)
|
|
Device Dimensions
|
520 mm × 415 mm × 224 mm (L × W × H)
|
|
Battery Life
|
Approximately 4 hours (at 20℃ ambient temperature)
|
|
Operating Temperature
|
-20℃ ～ +65℃
|
|
Protection Rating
|
IP65 (case closed)
|
Ⅲ. Product Core Advantages
|
Advantage
|
Description
|
|
Briefcase Design
|
Integrated portable case, grab-and-go, ready to use immediately
|
|
Passive Detection
|
No signal emission, strong concealment, suitable for sensitive areas
|
|
Simultaneous Multi-Target Tracking
|
Supports parallel detection and display of 10+ drones
|
|
Strong Environmental Adaptability
|
IP65 protection, wide temperature operation from -20℃ to +65℃
|
|
Flexible Deployment
|
Supports offline/online dual modes, usable in network-free environments
|
